Mulberry leaf alleviates streptozotocin-induced diabetic rats by attenuating NEFA signaling and modulating intestinal microflora
Improvement of hyperglycemia through dietotherapy/herbal remedy is an effective approach to treating diabetes. In this study, mulberry leaf, famous for silkworm’s special food and therapeutic value without any side effects, alleviated diabetes by attenuating NEFA signaling and modulating intestinal microflora. Mulberry leaf treatment significantly reduce fasting blood-glucose and HbA1c, ameliorate the blood lipid profile and improve insulin resistance in streptozotocin-induced diabetic rats. Mechanistically, we found that mulberry leaf inhibited NEFA signaling by reducing downstream signaling in the NEFA pathway, further verified by reduced PKC and improved cellular energy homeostasis based on restored expression of PGC-1α, AK2, OXPHOS and adiponectin. Mulberry leaf treatment also restored the phyla Bacteroidetes and Proteobacteria and class Clostridia, which were associated with insulin resistance and diabetes. Our findings reveal that mulberry leaf is an edible with therapeutic potential for diabetes and may provide a novel dietotherapy/herbal remedy to the treatment of diabetes.
The increased prevalence of diabetes has focused attention on a worldwide issue that significantly affects human health. The diabetic population reached 415 million in 2015 and is predicted to increase to 642 million in 2040 worldwide according to the International Diabetes Federation (IDF)1. Hyperglycemia is the main symptom of diabetes which also leading to many complications such as, heart disease, stroke, chronic kidney failure2,3,4. Conventional therapy such as insulin and some oral medications can cause hypoglycemia5 and bring economic burden to patients. Therefore, some more acceptable strategy is urgently needed to develop. Recently, dietotherapy/herbal remedy posed potential in treating patients with diabetes for its advantage such as, safety, low cost and effectiveness6,7.
Mulberry leaves have been used as traditional medicine to prevent and cure diabetes8. Several pharmacologically important compounds, such as polyphenols, flavonoids, terpenoids and polysaccharides, are frequently reported to play roles in its anti-hyperglycemic effect9. In particular, 1-deoxynojirimycin (DNJ), which is abundant in mulberry leaf (Morus alba L.), is believed to be a typical naturally occurring imino sugar with potent biological activity10. However, the underlying anti-hyperglycemic mechanism of mulberry leaves has not been determined completely.
Diabetes is associated with insulin resistance and/or pancreatic islet β-cell dysfunction. The release of non-esterified fatty acids (NEFAs) may be the single most important factor in modulating insulin sensitivity. Increased NEFA levels are observed in obesity and type II diabetes, and they are associated with the insulin resistance observed in both11,12. Insulin resistance develops within hours of an acute increase in plasma NEFA levels in humans13. Conversely, insulin-mediated glucose uptake and glucose tolerance improve with an acute decrease in the NEFAs levels after treatment with an antilipolytic agent, acipimox14. In addition, NEFAs are important for normal β-cell function and they potentiate insulin release in response to glucose and non-glucose secretagogues15,16. This might involve a mechanism that depends on protein kinase c (PKC). NEFAs promote the generation of fatty acyl-CoA, which increases insulin release both by directly stimulating secretory granule exocytosis and by PKC activation16. NEFAs induce insulin resistance and impair β-cell function, making them likely culprits.
Recently, accumulated evidence has suggested that the intestinal microbiota plays an important role in the pathogenesis of diabetes17,18. Many articles have reported a correlation between changes in the intestinal microbiota and markers of diabetes. Lactobacillus species positively correlate with fasting glucose and glycosylated hemoglobin (HbA1c) levels, whereas Clostridium species negatively correlate with fasting glucose, HbA1c and insulin levels19. A recent study suggests that a higher blood glucose concentration may be predicted by a reduction in the proportion of anaerobes, particularly Bacteroides20. The intestinal microbiota may influence the host by affecting the body weight, bile acid metabolism, proinflammatory activity21, insulin resistance22, and modulation of gut hormones23. Therefore, therapy that modulates the intestinal microbiota may benefit glucose metabolism and improve insulin resistance in the host.
In our study, the anti-hyperglycemic effect of mulberry leaves which mixed into the food was studied with streptozotocin (STZ)-induced diabetes rats, and the potential mechanisms were explored. Our research also reveal that mulberry leaf mixed in food plays a well enough role in combating diabetes, which may provide a novel therapeutic approach to the treatment of hyperglycemia.
Mulberry leaf was rich in bioactive substances
Bioactive substances of mulberry leaf, such as polysaccharide, DNJ, polyphenols and flavonoid, are shown in Table 1. The concentration of polysaccharide was 134.68 mg/g mulberry leaf powder. The level of DNJ reached 1.281 mg/g mulberry leaf powder, which was slightly higher than that given in other reports24,25. In addition, mulberry leaf was rich in rutin (29.86 mg/g), gallic acid (16.94 mg/g), chlorogenic acid (6.89 mg/g), and GABA (14.62 mg/g). Nutritional proximates, vitamins, minerals and fatty acids of mulberry leaf are shown in Supplementary Materials Tables S3 and S4.
Mulberry leaf reduced food and caloric intake

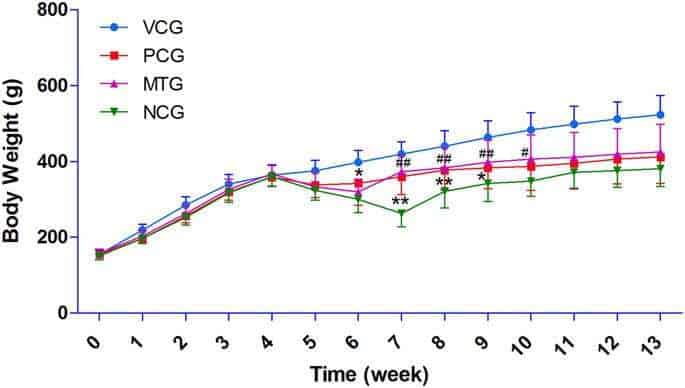

STZ treatment significantly reduced the body weights (Fig. 1 and Table S5) of rats. Both mulberry leaf and glibenclamide could somewhat protect the animals from acute weight loss (6–10th weeks). During the 7–8th weeks, the body weights of rats in both PCG and MTG were significantly (P < 0.01) higher than NCG. In addition, STZ-induced diabetic rats had higher food intake and total caloric intake (Table 2); however, they had less weight gain than did the other groups. The results indicated that mulberry leaf treatment could improve the food efficiency ratio (weight gain/food intake) through reducing the food and caloric intake and decreasing the body weight of diabetic rats.
Anti-hyperglycemic effect of mulberry leaf
STZ treatment successfully induced hyperglycemia in rats (Fig. 2c). The fasting blood-glucose (FBG) of NCG maintained a high level throughout the trial. Both mulberry leaf and glibenclamide could significantly reduce the FBG of diabetic rats (p < 0.05) after 30 days of treatment (Fig. 2c and Table S7). The GTT result indicted that both mulberry leaf and glibenclamide could enhance the insulin sensitivity of diabetic rats (Fig. 2a and Table S6). The areas under curve of GTT in both PCG and MTG were significantly (P < 0.01) lower than that of NCG (Fig. 2b). The HbA1c level of NCG increased dramatically compared to VCG as persistent hyperglycemia (Fig. 2d and Table S8). What’s more, mulberry leaf treatment significantly inhibited the glycation procedure of diabetic rats as the same therapeutic effect as glibenclamide (p < 0.05). Although the fasting serum insulin (FSI) level was unchanged between each group (Fig. 2e and Table S9), the homeostasis model assessment (HOMA, Fig. 2f,g and Tables 10–12 howed significantly reduced HOMA-IR and increased HOMA-IS and HOMA-β levels in both MTG and PCG compared with NCG. In addition, pathological data indicated that mulberry leaf could ameliorate pancreas islet damage by STZ (Fig. S1). In general, mulberry leaf could significantly reduce the FBG and HbA1c levels and improve the insulin sensitivity of diabetic rats.
Anti-hyperlipidemic effect of mulberry leaf
Diabetic rats of NCG had an aggravated blood lipid profile (elevated TG, CHO and LDL levels and slightly reduced HDL level) (Fig. 3a). Mulberry leaf treatment significantly reduced both the TG and LDL levels (P < 0.01) compared with NCG. In addition, the CHO level of MTG was also significantly (P < 0.05) decreased. While, no statistically significant differences were observed in the serum HDL and ALT levels between each group (Fig. 3b). Interestingly, the AST level was reduced in NCG. However, ALP increased in NCG and was significantly reduced (P < 0.05) with mulberry leaf and glibenclamide treatments. The results indicated that mulberry leaf could significantly ameliorate the blood lipid profile and hyperglycemia.
Inhibition of NEFA signaling pathway
As an important factor in modulating insulin sensitivity, NEFAs were elevated in diabetic rats (Fig. 3c) compared with vehicle control. The increased circulating NEFAs can induce insulin resistance and impair β-cell function via PKC activation16. Diabetic rats of NCG had a significantly elevated level of PKC, as indicated by the results of RT-PCR (Fig. 4a) and western blot (Fig. 4b and c). However, mulberry leaf could significantly reduce NEFAs (P < 0.01) and PKC (P < 0.05) levels.
Enhanced NEFA signaling affect energy homeostasis26: circulating NEFAs reduce adipocyte and muscle glucose uptake, and also promote hepatic glucose output13,27; in addition, NEFAs decrease glucose sensing by reducing mitochondrial oxidative phosphorylation (OXPHOS), ATP synthesis28. Decreased peroxisome proliferator activated receptor gamma coactivator 1-alpha (PGC-1α) and adenylate kinase 2 (AK2) transcription levels and reduced OXPHOS proteins and PGC-1α at the post-translation level were observed in diabetic rats without any treatment. However, mulberry leaf could significantly restore the expression of OXPHOS and PGC-1α at the end of the trial. Significantly increased PGC-1α (P < 0.01) and AK2 (P < 0.05) transcription levels were also observed in MTG compared with NCG (Fig. 4b and c). The number of insulin receptors (IR) in peripheral tissue is an important marker of insulin sensitivity. Diabetic rats showed a significantly reduced level of insulin receptors, as indicated by the results of western blot (Fig. S4.) and RT-PCR (Fig. S5). However, both mulberry leaf and glibenclamide treatments could significantly (P < 0.05) enhance insulin receptors expression.
Furthermore, NEFAs is antagonistic to adiponectin in obesity and type II diabetes29,30. Decreased adiponectin at transcription and post-translation levels was observed in diabetic rats, which was restored under mulberry leaf treatment (Fig. 4d and e). Adiponectin receptor 1 (ADPR1) expression of MTG was slightly elevated compared to the other groups, albeit it was not significant. Adiponectin receptor 2 (ADPR2) expression did not change between each group.
The results indicated that mulberry leaf reduced the NEFA signaling.
An average of 22,825 clean reads were obtained per sample. After operational taxonomic unit (OTU)-based cluster and taxonomy annotation, these clean reads were classified into 139 taxa that were annotated at the genus or family level. The taxa annotated at the family level were labeled un-annotated genus (UAG) at the genus level (Supplementary Materials Table S15). In this annotated dataset, Firmicutes (accounting for 85.8%) and Bacteroidetes (accounting for 6.8%) were the most abundant phyla of the OTUs in all groups, in agreement with previous studies on the intestinal microbiota of rats24. Nonmetric multidimensional scaling (NMDS) plots of these data are shown in Fig. 5a. STZ treatment resulted in obvious divergences in the community structure of the intestinal microbiota between the VCG2 and diabetes mellitus groups (PCG2, MTG2 and NCG2). After 9 weeks of mulberry leaf treatment, MTG3 pose similar (ANOSIM, P = 0.099 > 0.05; α diversity, P = 0.471 > 0.05 and β diversity, P = 0.993 > 0.05) community structure of the intestinal microbiota with VCG3. However, there is a significant difference between VCG3 and NCG3 (ANOSIM, P = 0.004 < 0.05; α diversity, P = 0.0058 < 0.01 and β diversity, P = 0.0014 < 0.01). The Simpson and Bray–Curtis indices were used to indicate the α and β diversity (Fig. 5b and c), respectively. The calculation of the analysis of similarities (ANOSIM) confirmed the similarity and divergence. These results indicate that the mulberry leaf diet could improve the community structure of the intestinal microbiota of diabetes mellitus SD rats.
The changes in the specific taxa were then analyzed to determine the taxa that accounted for shifts in the community structure (Fig. 6) using the LEfSe25 online tool. As shown in Figs 5a and 6a, the STZ treatment groups (PCG2, MTG2, and NCG2) shared extremely similar (ANOSIM, P > 0.05) community structure. Compared with VCG3 at the phylum level, NCG3 increased the Actinobacteria and decreased the Firmicutes, Bacteroidetes and Proteobacteria levels. Diabetic rats posed remarkably elevated levels of Bifidobacterium (↑79-fold), Collinsella (↑5.7-fold), Eubacterium (↑19.9-fold), Coprobacillus (↑12.1-fold), Dorea (↑2.1-fold) and Streptococcus (↑4.9-fold) at the genus level compared with VCG3. However, mulberry leaf treatment could significantly reverse the influence of STZ treatment on intestinal microflora. At the genus level, Bifidobacterium (↓30.2%), Collinsella (↓85.7%), Eubacterium (↓81.5%), Coprobacillus (↓94.3%) and Dorea (↓67.4%) were significantly reduced in MTG compared with NCG3. At the family or genus levels, Phascolarctobacterium (↑6.2-fold), Ruminococcus (↑2.3-fold), Oscillospira (↑2.7-fold, Ruminococcaceae (↑1.5-fold), Ruminococcus (↑2.0-fold), Clostridium (↑3.2-fold) of Firmicutes and S24-7 (↑4.6-fold), Prevotella (↑11.1-fold), Parabacteroides (↑2.7-fold), Prevotella (↑5.7-fold), Bacteroides (↑2.2-fold) of Bacteroidetes were significantly increased in MTG3 compared with NCG3. STZ-induced diabetic rats had significantly changed composition and function of the intestinal microbiota. Taken together, these data showed that mulberry leaf treatment reversed the majority of changed intestinal bacteria (Fig. 6c).
Hyperglycemia and insulin resistance in rats were successfully induced by single intravenous administration of STZ as a diabetogenic agent. Reed et al.31 fed SD rats a normal chow or high-fat diet (HFD) for 2 weeks and then injected them with STZ. Before STZ injection, FSI significantly increased in the HFD group (360 ± 36 pmol/L) compared with the normal chow group (178 ± 18 pmol/L). After STZ injection, FSI significantly decreased in the HFD group (186 ± 24 pmol/L), which was similar to the normal chow group. HFD feeding was likely to induce insulin resistance and increase the circulating insulin level. Although there was no variation in the FSI level between diabetes animals and vehicle control, decreased pancreas islet β-cell function and increased insulin resistance were observed in STZ-induced diabetes rats according to the HOMA. Glibenclamide is a traditional drug treating diabetes mainly by stimulating insulin release32, enhancing the insulin sensitivity of peripheral tissues33 and inhibiting liver glycogen decomposition and gluconeogenesis34,35. In the present study, glibenclamide significantly reduced FBG and HbA1c, and improved insulin sensitivity by increasing insulin receptors in peripheral tissue partially. Becknielsen et al.33 reported that treatment with glibenclamide could significantly increase insulin receptors of peripheral tissues in patients with type II diabetes. However, in general glibenclamide is not used to treat insulin resistance clinically. Mechanism of hypoglycemic effect of glibenclamide should be further studied. Clinically metformin is used to treat insulin resistance, primarily by suppressing hepatic gluconeogenesis36. In addition, metformin could increase insulin sensitivity, enhance peripheral glucose uptake37, decrease insulin-induced suppression of fatty acid oxidation38, and decrease absorption of glucose from the gastrointestinal tract39. STZ is always used in medical research to produce an animal model for hyperglycemia in a large single dose as well as type II diabetes or type I diabetes with multiple low doses. STZ-induced diabetes can be alleviated by promoting the secretion of insulin and/or improving insulin sensitivity. Therefore, both glibenclamide and metformin could be used as positive control treating STZ-induced diabetes. However, regardless of glibenclamide or metformin, their clinically therapeutic effect on diabetes are limited. Combined use of glibenclamide and metformin posed better therapeutic effect on diabetes clinically40,41,42, which is also suggested to be used as positive control in STZ-induced diabetes.
Mulberry leaf is reported to be anti-hyperglycemic, anti-hyperlipidemia, anti-obesity, antioxidant and anti-inflammatory43,44,45. The current study showed that mulberry leaf decreased the FBG and HbA1c, ameliorated the blood lipid levels and improved the insulin sensitivity in diabetic rats induced by STZ. The diabetic rats were characterized by weight loss, polydipsia, polyuria and polyphagia, which was consistent with a previous report46. Undoubtedly, mulberry leaf significantly improved the body weight, decreased the food and energy intake, and reduced the water intake and urination (clinical observation, data not shown) of diabetic rats. Mulberry leaf or its extract was rich in DNJ47, GABA, flavonoids, polyphenols48 and polysaccharide49. The isolated flavonol glycoside and polyphenol contents from mulberry leaves were shown to have antioxidant activity43,44 and be effective in attenuating body lipid accumulation and preventing obesity45. Moreover, long-term administration of ethanol extract (rich in flavonoids and polyphenols) from mulberry leaf had an anti-diabetic effect50 and restored arterial pressure46 in chronic diabetic rats. Mulberry DNJ, a potent glucosidase inhibitor, has been demonstrated as beneficial for suppressing abnormally high blood glucose levels, preventing diabetes47. Mulberry polysaccharides also played an important role in protecting against alloxan-induced pancreatic islet damage through their scavenging ability49. Mulberry leaf in this study was rich in polysaccharides, DNJ, flavonoid (rutin), polyphenols (chlorogenic acid and gallic acid) and GABA, which likely helped alleviate symptoms in STZ-induced diabetic rats.
In our study, we demonstrate that mulberry leaf alleviated diabetes partially by attenuating NEFA signaling. Insulin resistance is generally regarded as a pathological condition in which cells fail to respond to the normal actions of insulin, leading to high blood glucose. At the molecular level, cells sense insulin through insulin receptors, and the signal propagates through a cascade of molecules that are collectively known as the PI3K/Akt/mTOR signaling pathway51. The pathway’s sensitivity to insulin can be blunted by many factors, such as NEFAs, causing insulin resistance. Impaired β-cell function and insulin resistance could impair adipocyte metabolism, resulting in increased lipolysis and elevated NEFA levels. Elevations in both NEFAs and glucose can occur simultaneously; together, they are more deleterious to islet health and insulin action than either alone16,52. The present study showed that STZ-induced diabetic rats were strongly associated with insulin resistance and elevated circulating NEFAs levels. As an important factor in modulating insulin sensitivity, NEFAs can induce insulin resistance and impair β-cell function via PKC activation53.
Enhanced NEFA signaling has a negative effect on cellular energy homeostasis. NEFAs can be taken up from the blood by all cells that have mitochondria (mainly in liver and muscle). Increased circulating NEFAs reduce cellular glucose uptake and promote hepatic glucose output13,27. In addition, increased intracellular NEFAs result in competition with glucose for substrate oxidation, leading to a serial inhibition of pyruvate dehydrogenase, phosphofructokinase, hexokinase II and OXPHOS activity, ATP synthesis28. To further investigate the influence of mulberry leaf on NEFA signaling, key factors associated with energy metabolism were monitored. PGC-1α is a transcriptional coactivator that regulates the genes involved in mitochondrial fatty acid oxidation and ATP synthesis54. It is the major regulator of mitochondrial biogenesis and may also be involved in regulating cellular cholesterol homoeostasis and the development of obesity. Gene expression profiling studies have shown that decreased expression of PGC-1α and related gene products could affect mitochondrial function in people with insulin resistance and type II diabetes55. AK2, a phosphotransferase enzyme plays an important role in oxidative phosphorylation56, which is the most important metabolic pathway releasing energy that is used to reform ATP57. In addition, adiponectin is a protein hormone that modulates a number of metabolic processes58, including glucose regulation and fatty acid oxidation, and it plays a role in suppressing the metabolic derangements, which may result in obesity and type II diabetes59. In the present study, STZ-induced diabetic rats showed disordered energy homeostasis, which could be restored significantly under mulberry leaf treatment. These results indicated that mulberry leaf could reduce the NEFA signaling based on improving the cellular energy homeostasis.
Accumulating evidence has demonstrated that the changes in the composition of the intestinal microbiota may be specifically associated with hyperglycemia and diabetes60,61,62. In this study, the proportion of the phylum Bacteroidetes (↓64.9%) was significantly reduced, whereas the phyla Firmicutes (↓8.4%) and Proteobacteria (↓29.1%) were somewhat, but not significantly, reduced in the diabetic group. A reduction in the proportion of the phylum Bacteroidetes was always associated with obesity and hyperglycemia61,62. In an investigation of diabetic humans, the proportions of the phylum Firmicutes and class Clostridia are significantly reduced; the phyla Bacteroidetes and Proteobacteria were also reduced in the diabetic group and the proportion of Betaproteobacteria was positively correlated with the plasma glucose levels63. In a leptin-deficient ob/ob murine model, Ley et al.61 found a difference in the ratio of Bacteroidetes and Firmicutes, the two dominant intestinal bacterial phyla. Compared with their lean counterparts, obese mice showed a decrease in Bacteroidetes and corresponding increase in Firmicutes. When obese humans were placed on either a fat-restricted or carbohydrate-restricted low-calorie diet, an increase in the abundance of Bacteroidetes and a decrease in Firmicutes was reported64. In this study, mulberry leaf treatment significantly restored the phyla Bacteroidetes and Proteobacteria in STZ-induced diabetic rats. The proportion of Firmicutes was slightly, but not significantly, reduced; however, the class Clostridia was significantly increased after mulberry leaf treatment. Previous studies showed that the proportion of Clostridia in human adults with type II diabetes was significantly lower than in controls and showed a tendency to decrease with higher plasma glucose levels63,65. The restored phylum Bacteroidetes and Proteobacteria and class Clostridia might play important roles in ameliorating diabetes with mulberry leaf.
Most significantly, Actinobacteria was enriched by approximately 9.4-fold in diabetic rats compared with vehicle control, especially the genuses Bifidobacterium and Collinsella. Relative abundances of Actinobacteria were found in human adults with type II diabetes63. An increase in the gut Actinobacteria in obese people has also been observed in a core gut microbiome study of obese and lean twins60. However, several studies showed that the levels of Bifidobacterim and Collinsella were significantly and positively correlated with improved glucose tolerance and low-grade inflammation in prebiotic treated mice66,67,68. In this study, mulberry leaf treatment slightly decreased the level of Bifidobacterim, but it significantly reduced the proportion of Collinsella. The function of Actinobacteria in gut microbiota was not thoroughly understood. Therefore, further research is required to gain detailed information about gut Actinobacteria compositional changes and their associated impact with obesity and diabetes.
Hyperglycemia/diabetes has gained substantial attention worldwide as a serious public health issue. In the current study, mulberry leaf could reduce the FBG and HbA1c, ameliorate the blood lipid profile and improve the insulin sensitivity in diabetic rats induced by STZ. The abundant DNJ, flavonoids, polyphenols and polysaccharides in mulberry leaf may be responsible for the beneficial effect on diabetes. Mulberry leaf could alleviate diabetes through attenuating NEFA signaling based on improving the cellular energy homeostasis. In addition, mulberry leaf treatment restored the phyla Bacteroidetes and Proteobacteria and class Clostridia, which were associated with insulin resistance and diabetes. In summary, this report demonstrates for the first time that mulberry leaf could partially alleviate diabetes by attenuating NEFA signaling. In addition, the restored intestinal microflora communities contributed to the ameliorated diabetes. Mulberry leaf posed great potential in herbal remedy treating diabetes. However, the exact molecular mechanism underlying mulberry leaf-mediated diabetes alleviation remains to be further investigated.
Mulberry leaves (Morus alba var. multicaulis (Perrott.) Loud.) were harvested from a farm in Danyang City, Jiangsu Province, China. The 4th to 6th leaves from the apex of healthy plants were plucked, thoroughly washed, dried at 45 °C for 36 h and ground to a fine powder in an electric grinder. The nutritional proximates (moisture, protein, fat, crude fiber, and ash), vitamins, minerals, fatty acids and polysaccharide of the powder were measured using validated standard methods (Supplementary Materials Table S1).
Functional components, including DNJ, rutin, chlorogenic acid, gallic acid, β-sitosterol, γ-aminobutyric acid (GABA) and carotene, of the mulberry leaf powder were detected by high-performance liquid chromatography (HPLC) with an Agilent 1100 HPLC system (Agilent Technologies Inc., California, USA) together with a diode array detector. All standard substances (purity > 98%) were purchased from Beijing Solarbio Science & Technology Co., Ltd. (Beijing,...
